Test Action Types

Follow

Test Action Types Overview

Functionize offers a wide variety of Test Actions to automate testing of your application under test (AUT). There are two categories of Test Actions that we will provide details for below: Element-based and Non-Element-based.



Architect Test Actions

Certain Test Actions are added automatically by Architect during recording, such as Pageinit, every time a URL opens or reloads. Some Test Actions, such as opening the Email Reader tool or Not on Page, are available to add via Architect during initial recording or Local Edit.



Inserting Test Actions

Functionize has a feature called Quick Add that makes it easy to insert Test Actions without having to record with Architect. Element-based Test Actions can be added to existing tests through the Slider View. Here the element can be selected and associated attributes set from the last-run screenshot. Non-Element-based Test Actions can be added to existing tests from the Test Details page as well as the Slider View.

See User Guide: Quick Add



Editing Test Actions

The Test Action Settings for both Element-based and Non-Element-based Test Actions can be viewed and edited in both the Test Details page and Slider View.

See User Guide: Action Settings



Actions List

This list contains all Test Actions available in Functionize automated tests, as well as the Test Action Settings available for each by default. Click the name of any Test Action to jump down to see the default Test Action Setting details.



Alert (non-Element-based) Click OK on a JavaScript alert pop-up modal.

Apicall (non-Element-based) Open the Functionize API Explorer tool for testing API calls.

Break (non-Element-based) Add to return a true/false statement, if returns true, the loop will break.

Click (Element-based) Click an element on the webpage.

Conditional(non-Element-based) Add to return a true/false statement, if returns true, the conditional executes.

Confirm (non-Element-based) Click OK or Cancel on a pop-up modal.

Contextswitch (Element-based) Added by Architect to denote switching context, such as browser tabs or iFrames.

Continue (non-Element-based) Add return a true/false statement, if returns true, the loop will continue.

Customcode (non-Element-based) Add custom JavaScript functions for advanced testing needs.

DBExplorer (non-Element-based) Open the Functionize DB Explorer tool for testing backend databases.

Doubleclick (Element-based) Double-click an element on the webpage.

Download (non-Element-based) Download a file from the application under test.

Dragby (Element-based) Track a drag via mouse coordinates.

Emailreceive (non-Element-based) Open the Functionize Email Reader tool.

Enter (Element-based) Add an Enter keypress.

ESignature (Element-based) Enter an E-signature item into a webpage input.

Extension-curl (non-Element-based) Call cURL commands to call an API as part of a test execution.

Extension-curl extension (non-Element-based) UNDER DEVELOPMENT Users should be able to copy/paste cURL commands directly from Postman.

Extension-Postman Collection (non-Element-based) UNDER DEVELOPMENT Postman Collection: Users can access Postman Collections via import of your JSON file.

FileViewer (non-Element-based) Open the Functionize File Viewer tool.

Hover (Element-based) Application elements with ‘on-hover’ activations.

Html5dragdrop (Element-based) Drag and drop HTML5 elements provided by the browser.

Input (Element-based) Enter test data into an element within the application under test.

Keypress (non-Element-based) Add a keypress as part of test execution, such as an arrow key.

Loop (non-Element-based) Perform a set of test actions a set number of time or based on adding custom JavaScript to determine when a loop should continue to execute or exited.

Navigate (non-Element-based) Direct the test to a new URL.

Notonpage (non-Element-based) Confirm an item does not exist on a webpage.

Pageinit (non-Element-based) Added by Architect every time a page is initialized.

Prompt (non-Element-based) Input text into a webpage prompt modal.

Resize (non-Element-based) Resize the browser window.

Rightclick (Element-based) Right-click an element within application under test.

Scroll (Element-based) Move to a new location on the webpage.

SetCookie (non-Element-based) Injecting cookie data into the application under test during test execution.

SetHTMLStorage (non-Element-based) Injecting HTML5 data into the application under test during test execution.

SetVariable (non-Element-based) Using a Functionize Expression to store data in a variable to be used later in the same test (Local Variable) or other tests (Project Variable).

Select (Element-based) Select a specific webpage element, such as drop-down list.

Smsreceive (non-Element-based) Open the Functionize SMS Reader tool to receive a message.

Smssend (non-Element-based) Open the Functionize SMS Reader tool to send a message.

Textselect (Element-based) Select (highlight) text on a webpage.

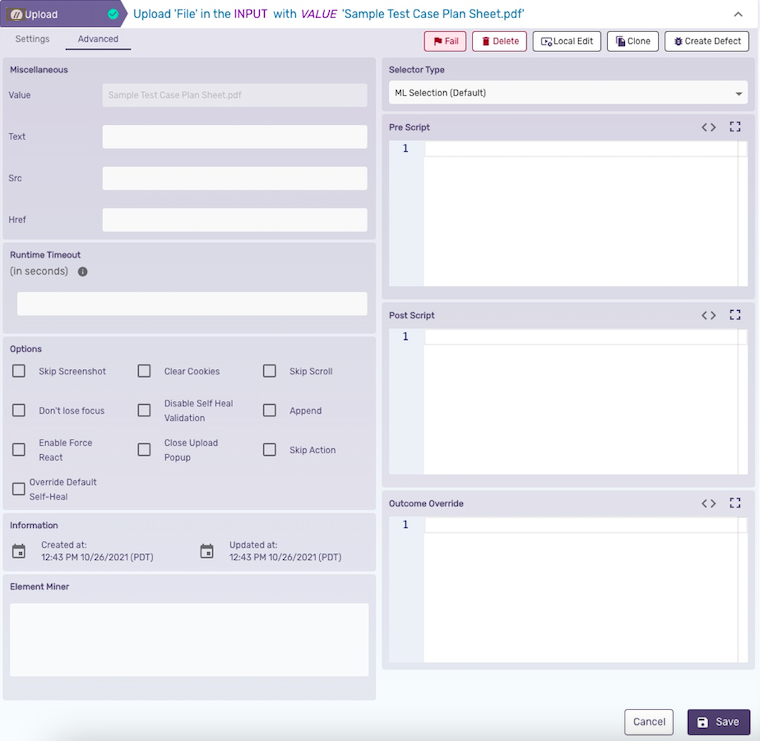

Upload (Element-based) Upload a static or dynamic file to the application under test.

Urlchange (non-Element-based) Added by Architect to direct the test to a new URL.

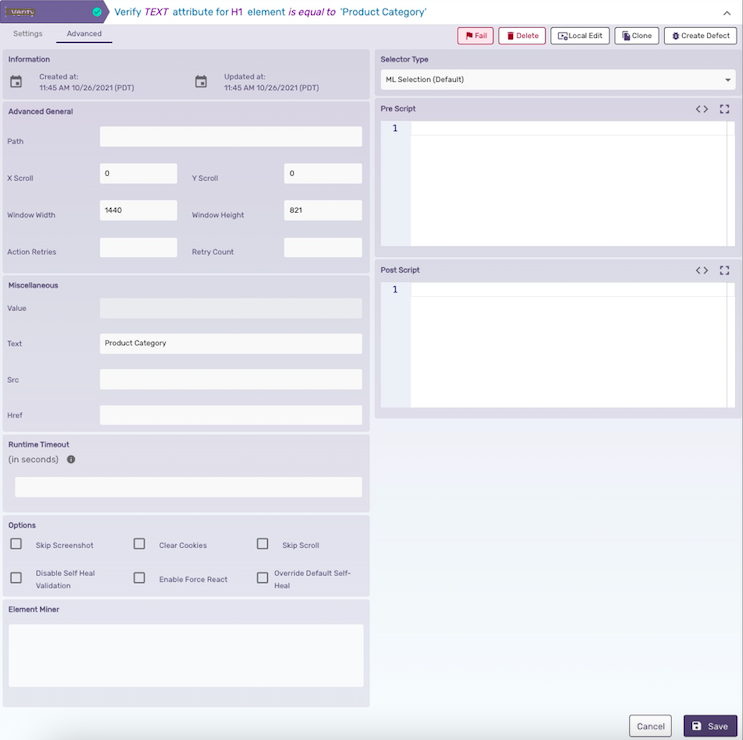

Verify (Element-based) Verify attributes or CSS style sheet properties of any webpage elements.

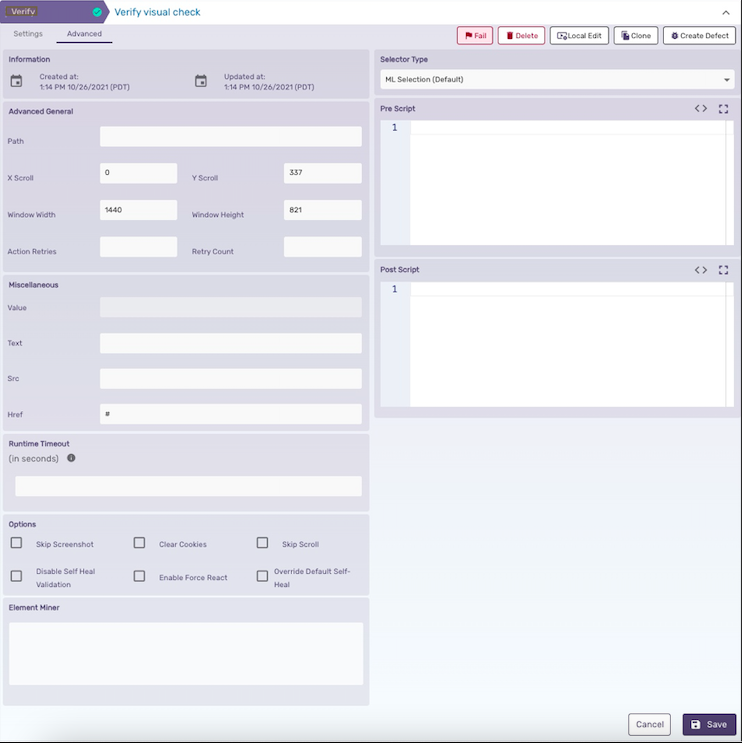

Verify-Visual Verification (Element-based) Perform a visual check on individual webpage elements based on a Baseline or a Previous Step.

VerifyVariable (non-Element-based) Verify contents of Variables created by SetVariable action type.

Vispagechk (non-Element-based) Perform a full-page visual check based on a Baseline or a Previous Step.

Wait (non-Element-based) Set time (in milliseconds) to pause the execution of a test in order to wait for backend processing to complete.  This Action Type has SmartWait capabilities to continue test if network calls complete before wait time.



Element-based Test Actions

List all Element-based Test Actions and their default settings, linked from list above.

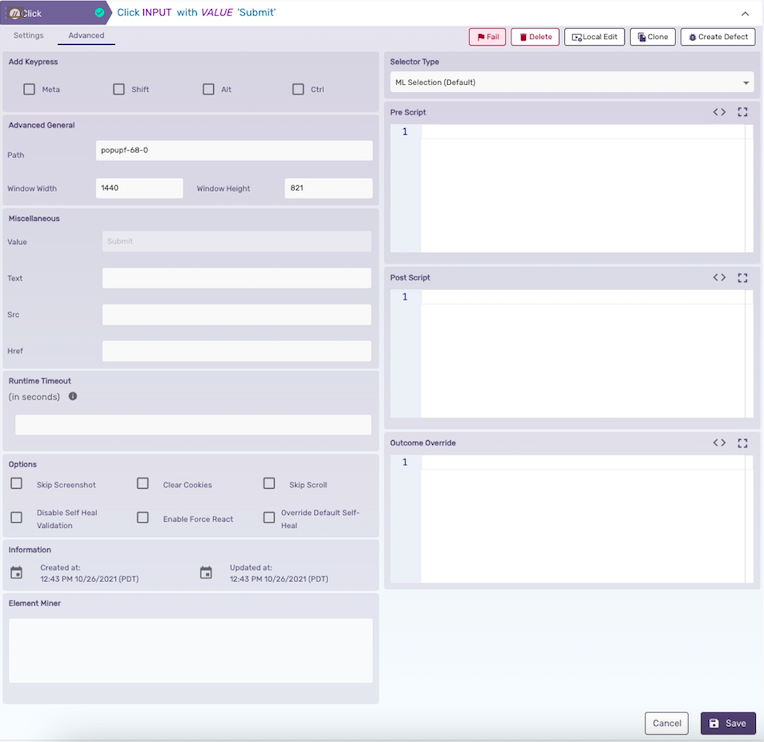

Click

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Executor Type Section: Executor Type, Mouse X, Mouse Y
  • Add Keypress Section: Meta, Shift, Alt, Ctrl
  • Advanced General Section: Path, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Selector Type Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section

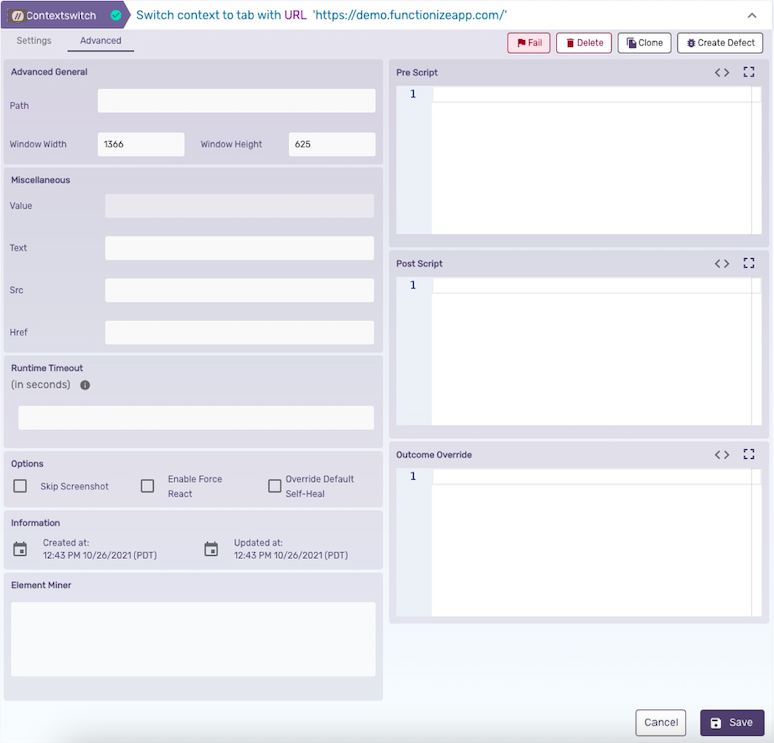

Contextswitch

Settings TAB Advanced TAB
  • General Section: Target Path, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height, Action Retries, Retry Count
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section

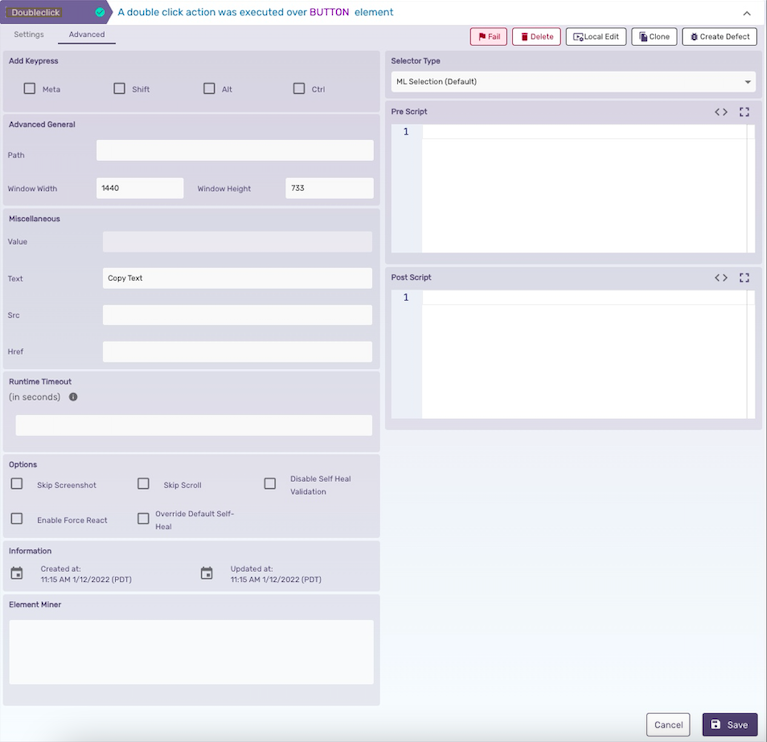

Doubleclick

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Executor Type Section: Executor Type, Mouse X, Mouse Y
  • Note Section
  • Add Keypress Section: Meta, Shift, Alt, Ctrl
  • Advanced General Section: Path, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Selector Type Section
  • Pre Script Section
  • Post Script Section

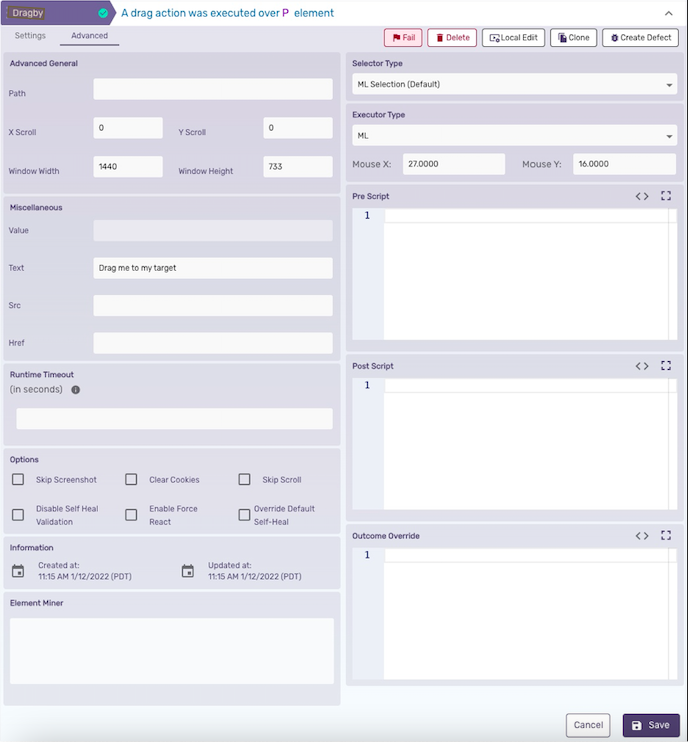

Dragby

Settings TAB Advanced TAB
  • General Section: Mouse X Start, Mouse Y Start, Drag X By, Drag Y By, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Selector Type Section
  • Executor Type Section: Executor Type, Mouse X, Mouse Y
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section

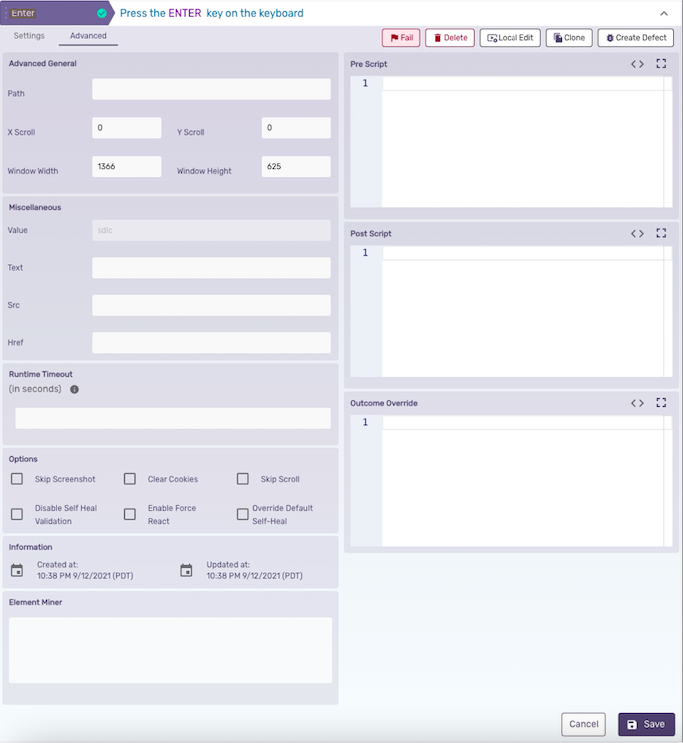

Enter

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section

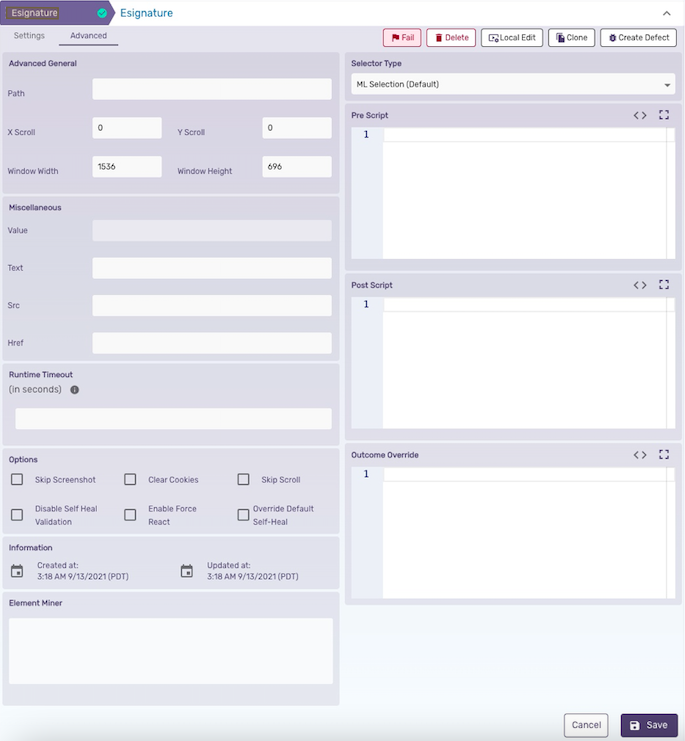

ESignature

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Selector Type Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section

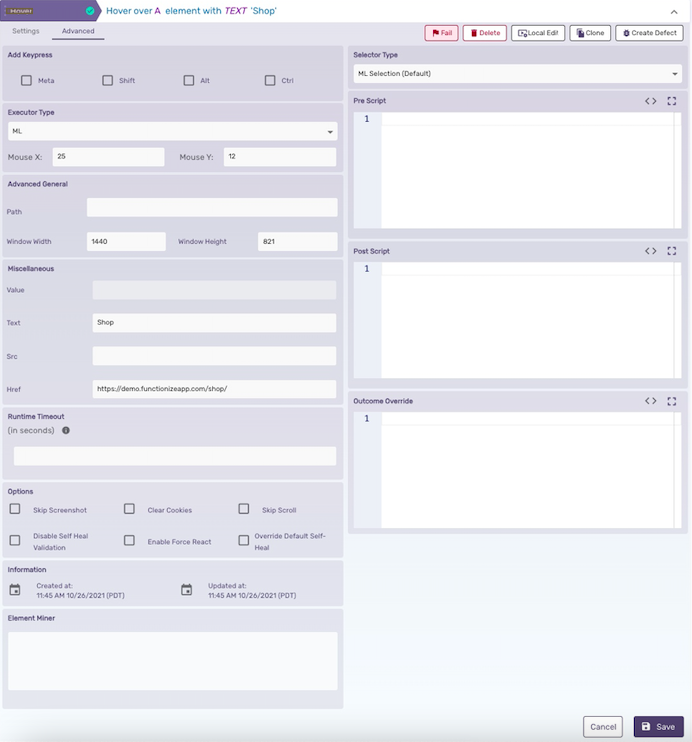

Hover

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Add Keypress Section: Meta, Shift, Alt, Ctrl
  • Executor Type Section: Executor Type, Mouse X, Mouse Y
  • Advanced General Section: Path, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Selector Type Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section

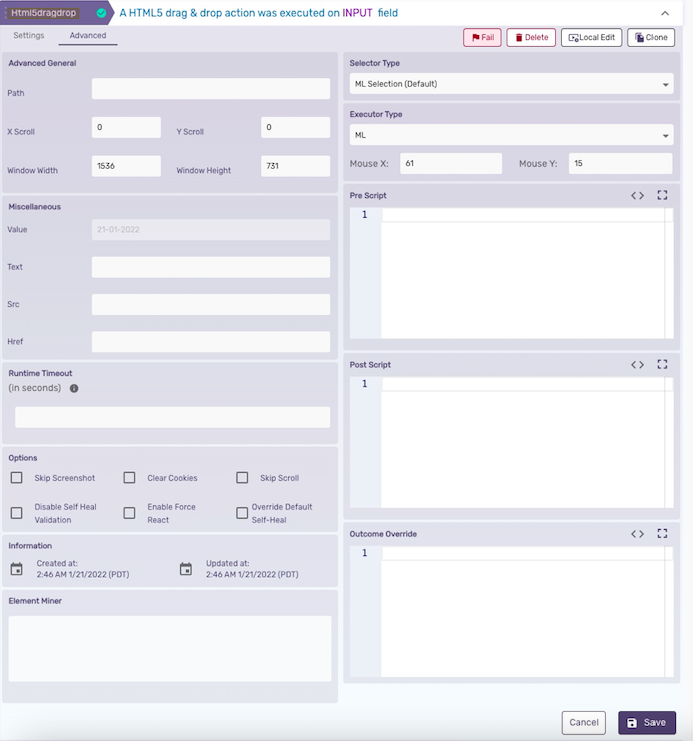

Html5dragdrop

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Selector Type Section
  • Executor Type Section: Executor Type, Mouse X, Mouse Y
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




Input

Settings TAB Advanced TAB
  • General Section: Input value, Skip Action, Don't lose focus
  • Mappings Section: Manage Extension, Add Test Data
  • Executor Type Section
  • Note Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Don't lose focus, Disable Self Heal Validation, Append, Encrypt, Enable Force React, Override Default Self-Heal
  • Executor Type Section
  • Information Section
  • Element Miner Section
  • Selector Type Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section

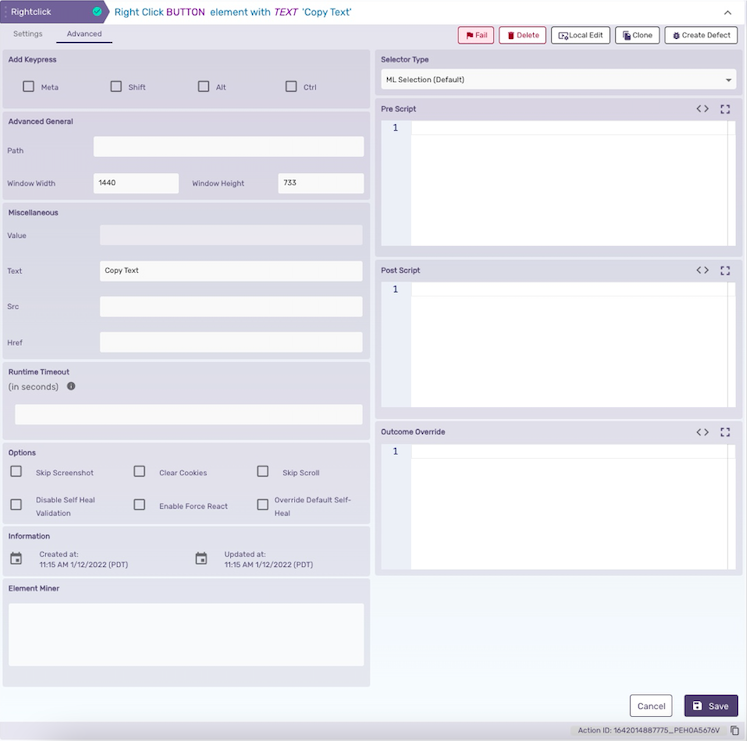

Rightclick

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Executor Type Section: Executor Type, Mouse X, Mouse Y
  • Note Section
  • Add Keypress Section: Meta, Shift, Alt, Ctrl
  • Advanced General Section: Path, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Selector Type Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section

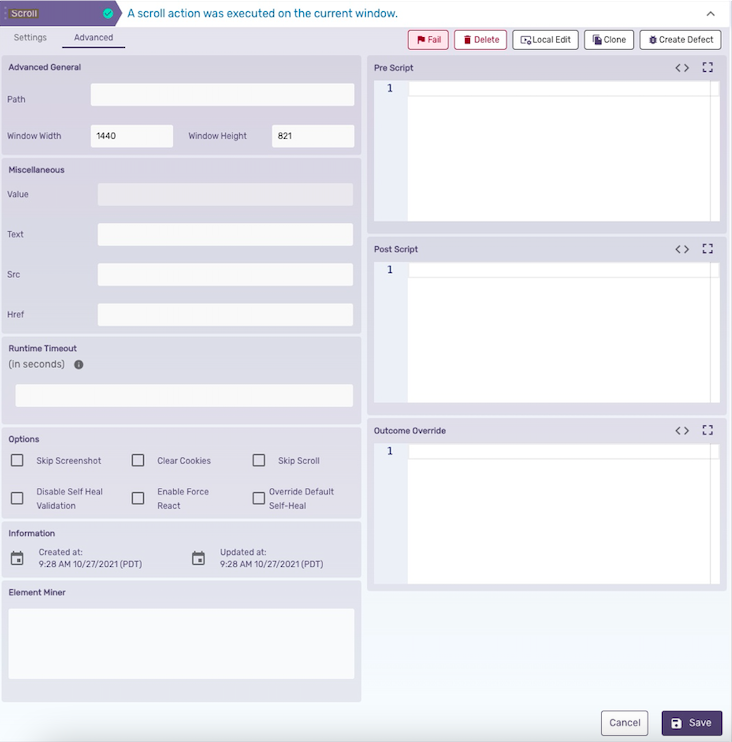

Scroll

Settings TAB Advanced TAB
  • General Section: X Coordinate, Y Coordinate, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Executor Type Section: Executor Type, Mouse X, Mouse Y
  • Note Section
  • Advanced General Section: Path, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




Select

Settings TAB Advanced TAB
  • General Section: Value, Text, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Selector Type Section
  • Note Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Selector Type Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




Textselect

Settings TAB Advanced TAB
  • General Section: Selected Text, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Selector Type Section
  • Executor Type Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




Upload

Settings TAB Advanced TAB
  • General Section: Attachment, Upload From Step
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Don't lose focus, Disable Self Heal Validation, Append, Enable Force React, Close Upload Popup, Skip Action, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Selector Type Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




Verify

Settings TAB Advanced TAB
  • Verifications Section: DOM Attribute, Operator, Value, Multiple, CSS Attribute, Operator, Value, Multiple, Visual Verification, Visual Check Type, Visual Match Requirement(%)
  • General Section: Optional, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Outcome Override Section
  • Information Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height, Action Retries, Retry Count
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Element Miner Section
  • Selector Type Section
  • Pre Script Section
  • Post Script Section




Verify-Visual Verification

Settings TAB Advanced TAB
  • Verifications Section: DOM Attribute, Operator, Value, Multiple, CSS Attribute, Operator, Value, Multiple, Visual Verification, Visual Check Type, Visual Match Requirement(%)
  • General Section: Optional, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Outcome Override Section
  • Information Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height, Action Retries, Retry Count
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Disable Self Heal Validation, Enable Force React, Override Default Self-Heal
  • Element Miner Section
  • Selector Type Section
  • Pre Script Section
  • Post Script Section







Non-Element-based Test Actions

List all Non-Element-based Test Actions and their default settings, linked from list above.



Alert

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension
  • Note Section
  • Advanced General Section: Path, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Apicall

Settings TAB Advanced TAB
  • General Section: Skip Action, Skip Scroll
  • Mappings Section: Manage Extension
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Enable Force React
  • Information Section
  • Element Miner Section
  • Outcome Override Section




Break

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Failure Message Section
  • Break Code Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Conditional

Settings TAB Advanced TAB
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • General Custom JS Section: Conditional End Action, Skip Action
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Confirm

Settings TAB Advanced TAB
  • General Section: OK, Cancel, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Continue

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Failure Message Section
  • Continue Code Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Customcode

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Failure Message Section
  • Custom Code Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




DBExplorer

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Enable Force React
  • Information Section
  • Element Miner Section
  • Outcome Override Section




Download

Settings TAB Advanced TAB
  • General Section: Skip Action
  • File Section: Attach File, File
  • Mappings Section: Manage Extension
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




Emailreceive

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension
  • Note Section
  • Information Section
  • Element Miner Section
  • Outcome Override Section




Extension-curl

Settings TAB Advanced TAB
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • General Section: Extension Name, Command, Validate, Expected Response
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Extension-curl extension UNDER DEVELOPMENT

Settings TAB Advanced TAB
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • General Section: Extension Name, Method, Data, URL, Header Command, Validate, Expected Response
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section





Extension-Postman Collection UNDER DEVELOPMENT

Settings TAB Advanced TAB
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • General Section: Extension Name, Collection Type, Collection File, Environment Variable Type, Environment Variables File, Processing Type, Data File Type, Data File, Command, Validate, Expected Response
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section





FileViewer

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Enable Force React
  • Information Section
  • Element Miner Section
  • Outcome Override Section




Keypress

Settings TAB Advanced TAB
  • General Section: Key, Meta, Shift, Alt, Ctrl, Skip Action, Don't lose focus
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies
  • Executor Type Section: Executor Type, Mouse X, Mouse Y
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Loop

Settings TAB Advanced TAB
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • General Section: Custom JS, X Times, Custom JS, Times, Loop End Action
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Navigate

Settings TAB Advanced TAB
  • General Section: URL, Skip Action, Don't lose focus
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Enable Force React
  • Information Section
  • Element Miner Section
  • Outcome Override Section




Notonpage

Settings TAB Advanced TAB
  • General Section: Input value, Skip Action, Don't lose focus
  • Mappings Section: Manage Extension, Add Test Data
  • Selector Section
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React, Override Default Self-Heal
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




Pageinit

Settings TAB Advanced TAB
  • General Section: URL, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, Window Width, Window Height, Latitude, Longitude
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Enable Force React
  • Information Section
  • Element Miner Section
  • Outcome Override Section
  • Pre Script Section
  • Post Script Section




Prompt

Settings TAB Advanced TAB
  • General Section: Input, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




Resize

Settings TAB Advanced TAB
  • General Section: Width, Height, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




SetCookie

Settings TAB Advanced TAB
  • General Section: Name, Value, Duration, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




SetHTMLStorage

Settings TAB Advanced TAB
  • General Section: Storage Name, Storage Value, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




SetVariable

Settings TAB Advanced TAB
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • General Section: Scope, Type, Name
  • Expression Section
  • Skip Action
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Smsreceive

Settings TAB Advanced TAB
  • General Section: Skip Action
  • Mappings Section: Manage Extension
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Enable Force React
  • Information Section
  • Element Miner Section
  • Outcome Override Section




Smssend

Settings TAB Advanced TAB
  • From Number, To Number, Message, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Urlchange

Settings TAB Advanced TAB
  • General Section: URL, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, Window Width, Window Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




VerifyVariable

Settings TAB Advanced TAB
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Javascript Verification Section
  • Optional, Skip Action
  • Information Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Enable Force React
  • Element Miner Section
  • Pre Script Section
  • Post Script Section




Vispagechk

Settings TAB Advanced TAB
  • General Section: Visual Match Requirement (%), Visual Check Type, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Advanced General Section: Path, X Scroll, Y Scroll, Window Width, Window Height, Capture Width, Capture Height
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section




Wait

Settings TAB Advanced TAB
  • General Section: Time, Smart Wait, Skip Action
  • Mappings Section: Manage Extension, Add Test Data
  • Note Section
  • Miscellaneous Section: Value, Text, Src, Href
  • Runtime Timeout (in seconds) Section
  • Options Section: Skip Screenshot, Clear Cookies, Skip Scroll, Enable Force React
  • Information Section
  • Element Miner Section
  • Pre Script Section
  • Post Script Section
  • Outcome Override Section





Related articles
