Action Types

Follow

Functionize offers a wide variety of Actions to make testing your site as accurate as possible.

There are two categories of Actions: Element-based and non-Element-based.

Inserting Actions: Element-based Actions can be added to existing tests through Slider View. Here the element can be selected and associated attributes set. Non-Element-based Actions can be added to existing tests from the Test Details page as well as Slider View.

Editing Actions: The Action Settings for both Element-based and non-Element-based Actions can be viewed and edited in both the Test Details page and Slider View.

Architect Actions: Certain Actions are added automatically by Architect during recording such as Pageinit every time a URL opens or reloads. Some Actions, such as opening the Email Reader Tool or Not on Page, are available to add via Architect during initial recording or Local Edit.

This list contains all Actions available in Functionize as well as the Action Settings available to each one by default.

See User Guide: Action Settings



Actions List

Click the name of the Action to jump down to its default Action Settings.

Alert (non-Element-based) Click OK on a Javascript alert pop-up

API Explorer (non-Element-based) Open the Functionize API call Explorer Tool

Click (Element-based) Click an element on the site

Confirmation (non-Element-based) Click OK or Cancel on a pop-up

Context Switch (Element-based) Added by Architect to denote switching context such as browser tabs or iFrames

Cookie (non-Element-based) Include injecting cookie data into your test

Custom Code (non-Element-based) Add custom JS functions for unique testing needs

DB Explorer (non-Element-based) Open the Functionize DB Explorer Tool

Double Click (Element-based) Double-click an element on the site

Download (non-Element-based) Download a file

Dragby (Element-based) Track a drag via mouse coordinates

DragDrop (Element-based) Drag and drop HTML5 elements provided by the browser

Email Reader (non-Element-based) Open the Functionize Email Reader Tool

Enter (Element-based) Add an Enter keypress

ESignature (Element-based) Enter an E-signature item to an input

File Viewer (non-Element-based) Open the Functionize File Viewer Tool

Full Page Check (non-Element-based) Perform a full-page visual comparison

Hover (Element-based) Test elements with "on-hover" activations

HTML Storage (non-Element-based) Include injecting HTML5 data into your test

Input (Element-based) Specify text to be entered into an element of the site

Key (non-Element-based) Add a keypress such as an arrow key

Navigate (non-Element-based) Direct the test to a new URL

Not on Page (non-Element-based) Confirm an item is not present or visible

Pageinit (non-Element-based) Added by Architect every time a page is initialized

Page Variable (non-Element-based) Create and add variables to your test via custom JS

Project Variable (non-Element-based) Create and add variables to your project via custom JS

Prompt (non-Element-based) Input text into a site prompt

Resize (non-Element-based) Resize the browser window

Right Click (Element-based) Right-click an element

Scroll (non-Element-based) Move to a new location on the page

Select (Element-based) Select a specific page element

SMS Reader (non-Element-based) Open the Functionize SMS Reader Tool

Test Variable (Element-based) Input data from a previous Action to a target element

Text Select (Element-based) Select text in an element

Upload (Element-based) Upload a file

URLChange (non-Element-based) Direct the test to a new URL

Verify (Element-based) Verify the state of your site

Visual Verification (Element-based) Verify the state of visual elements of your site

Wait (non-Element-based) Pause the flow of testing







List all Actions & their default settings (linked from alpha list above)

Element-based Actions

Click

  • Settings: Optional, Skip Action, Add Extension, Add Test Data, Executor Type, Note
  • Advanced: Skip Screenshot, Clear Cookies, Skip Scroll, Window Width, Window Height, Pre Script, Post Script, Outcome Override, Information, Selector Type

ContextSwitch

  • Settings: Skip Action, Add Extension, Note
  • Advanced: Skip Screenshot, Pre Script, Post Script, Information, Selector Type, Outcome Override

Double Click

  • Settings: Optional, Skip Action, Add Extension, Add Test Data, Executor Type, Note
  • Advanced: Skip Screenshot, Clear Cookies, Skip Scroll, Window Width, Window Height, Pre Script, Post Script, Outcome Override, Information, Selector Type

Dragby

  • Settings: Mouse Down X, Mouse Down Y, Mouse Up X, Mouse Up Y, Optional, Skip Action, Add Extension, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Skip Screenshot, Clear Cookies, Skip Scroll, Information, Pre Script, Post Script, Outcome Override, Executor Type, Selector Type

DragDrop (HTML5DragDrop)

  • Settings: Optional, Skip Action, Add Extension, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Skip Screenshot, Clear Cookies, Skip Scroll, Information, Pre Script, Post Script, Outcome Override, Executor Type, Selector Type

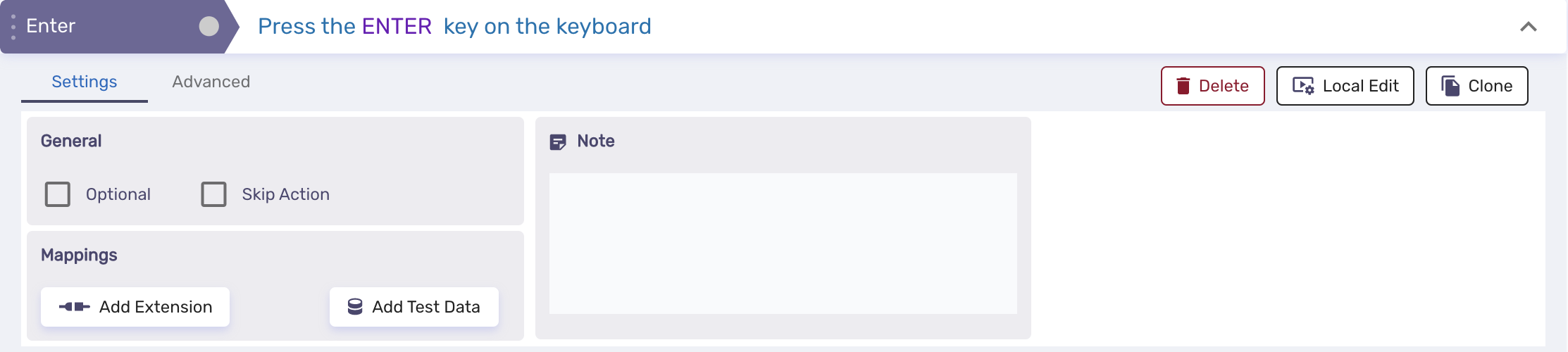

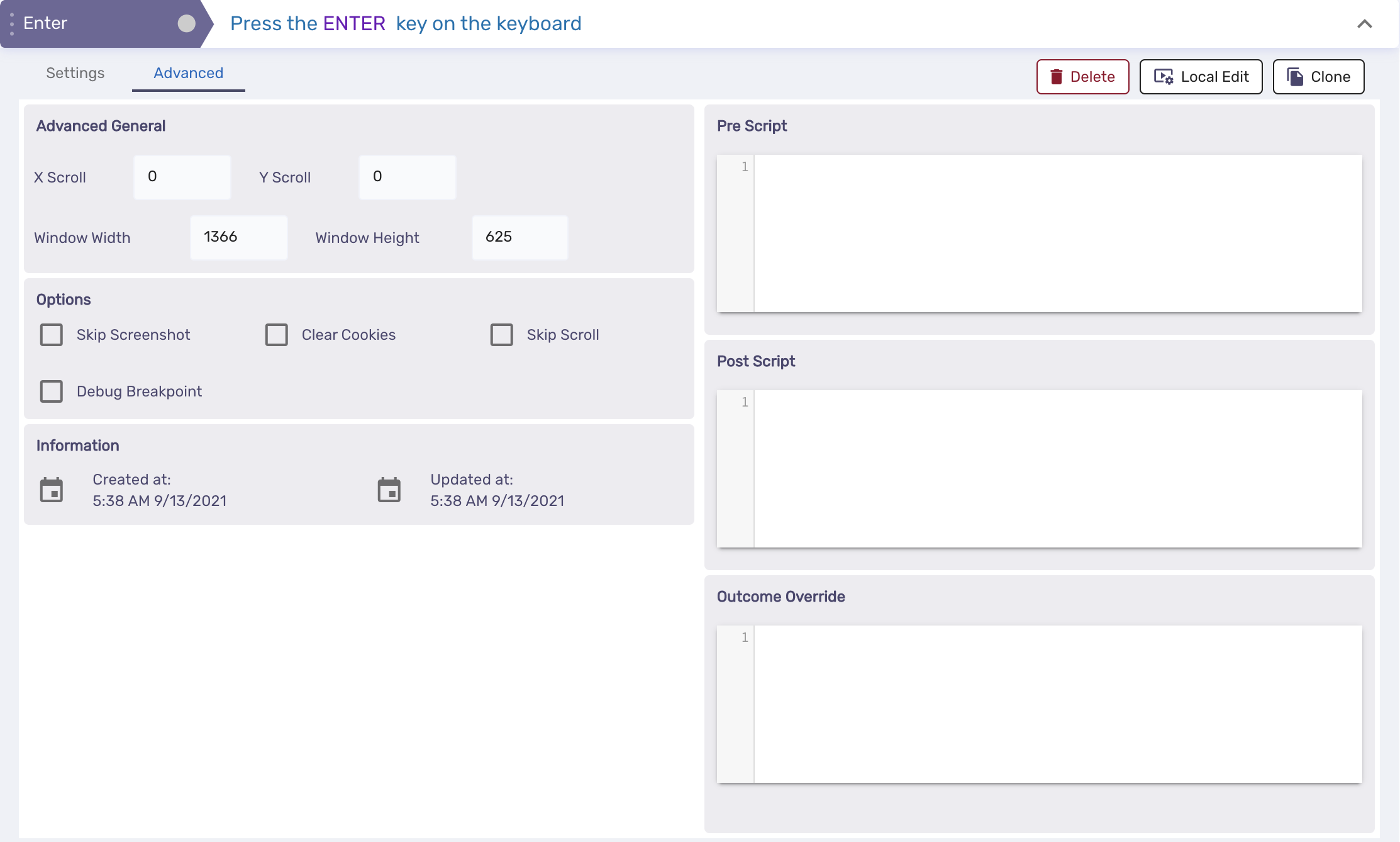

Enter

  • Settings: Optional, Skip Action, Add Extension, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Skip Screenshot, Clear Cookies, Skip Scroll, Information, Pre Script, Post Script, Outcome Override

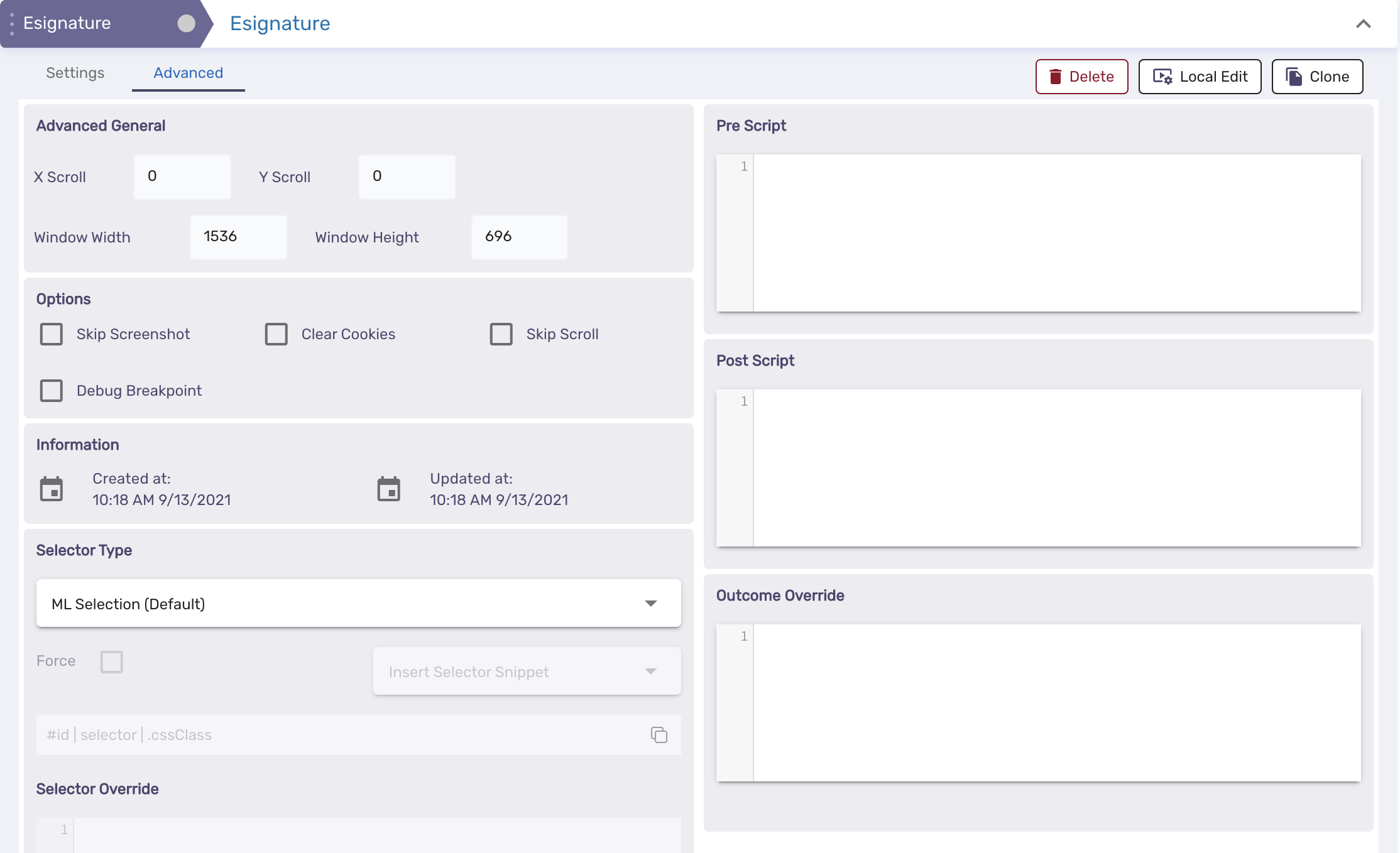

ESignature

  • Settings: Optional, Skip Action, Add Extension, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Skip Screenshot, Clear Cookies, Skip Scroll, Information, Pre Script, Post Script, Outcome Override, Selector Type

Hover

  • Settings: Optional, Skip Action, Smart Wait, Add Extension, Executor Type, Note
  • Advanced: X Scroll, Y Scroll, Window width, Window height, Skip screenshot, Clear cookies, Skip scroll, Add Outcome Override, Selector Type

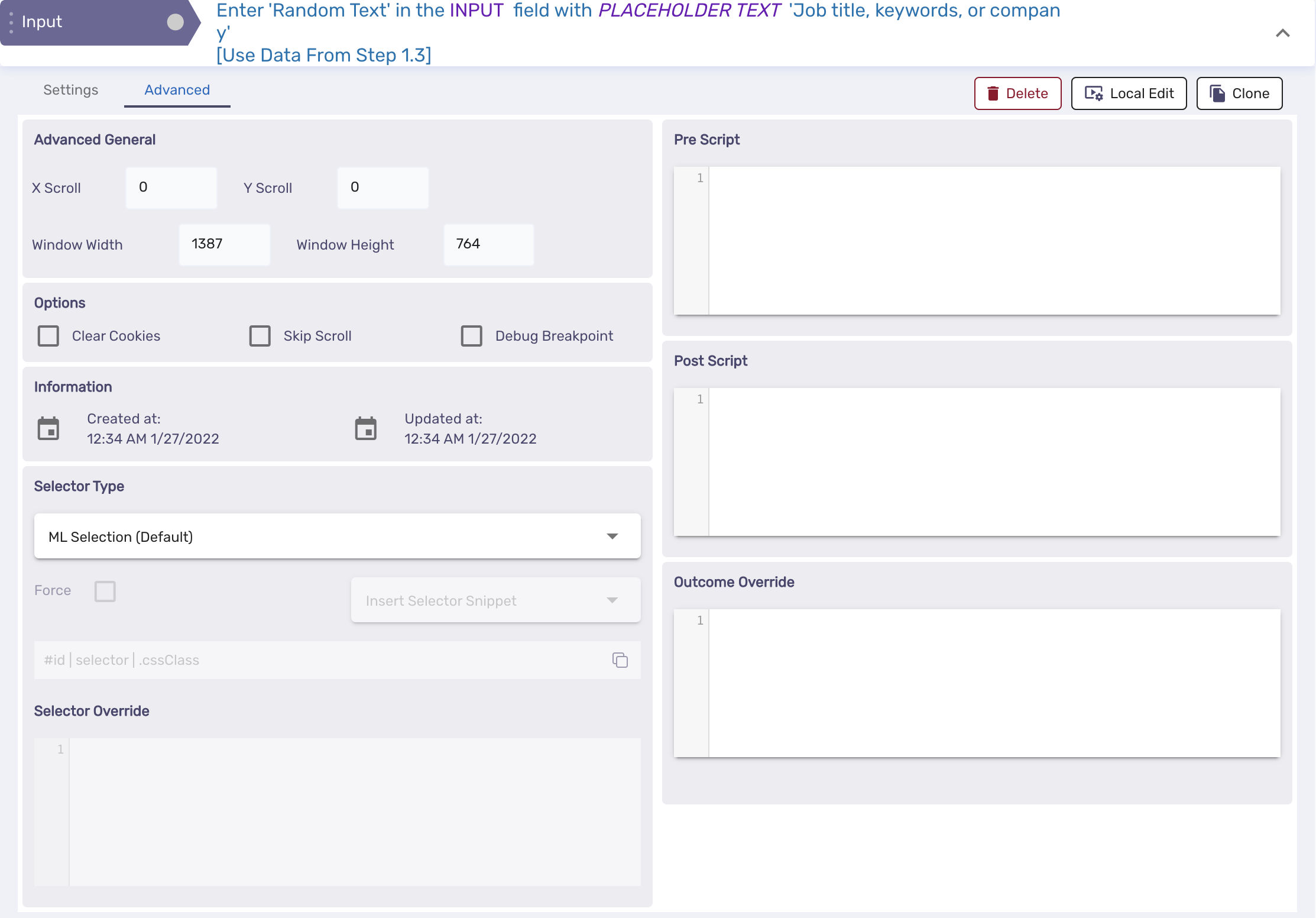

Input

  • Settings: Input Text, Optional, Skip Action, Don’t Lose Focus, Add Extension, Add Test Data, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Skip Screenshot, Clear Cookies, Skip Scroll, Information, Selector Type, Pre Script, Post Script, Outcome Override

Right Click

  • Settings: Optional, Skip Action, Add Extension, Add Test Data, Executor Type, Note
  • Advanced: Skip Screenshot, Clear Cookies, Skip Scroll, Window Width, Window Height, Pre Script, Post Script, Outcome Override, Information, Selector Type

Select

  • Settings: Value, Optional, Skip Action, Add Extension, Add Test Data, Selector Type, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Skip Screenshot, Clear Cookies, Skip Scroll, Information, Pre Script, Post Script, Outcome Override

Test Variable

  • Settings: Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script, Outcome Override

Text Select

  • Settings: Value, Optional, Skip Action, Add Extension, Add Test Data, Selector Type, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Skip Screenshot, Clear Cookies, Skip Scroll, Information, Pre Script, Post Script, Outcome Override

Upload

  • Settings: Upload (File Selection), Upload From Download Step (drop down), Download file option, Add Extension, Note
  • Advanced: Skip Screenshot, Information, Pre Script, Post Script, Outcome Override

Verify

  • Settings: Verifications Tile (DOM Verification CSS Verification, Visual Verification), Visual Check Type, Visual Match Requirement), Outcome Override, Input, Optional, Skip Action, Add Extension, Add Test Data, Selector Type, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Action Retries, Retry Count, Skip Screenshot, Clear Cookies, Skip Scroll, Information, Pre Script, Post Script

Visual Verification

  • Settings: Verifications Tile (DOM Verification CSS Verification, Visual Verification, Visual Check Type, Visual Match Requirement), Outcome Override, Input, Optional, Skip Action, Add Extension, Add Test Data, Selector Type, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Action Retries, Retry Count, Skip Screenshot, Clear Cookies, Skip Scroll, Information, Pre Script, Post Script





Non-Element-based Actions

Alert

  • Settings: Optional, Skip Action, Add Extension, Note
  • Advanced: Skip Screenshot, Clear Cookies, Skip Scroll, Window Width, Window Height, Pre Script, Post Script, Outcome Override, Information

API Explorer Tool

  • Settings: Optional, Skip Action, Add Extension, Note
  • Advanced: Information, Outcome Override

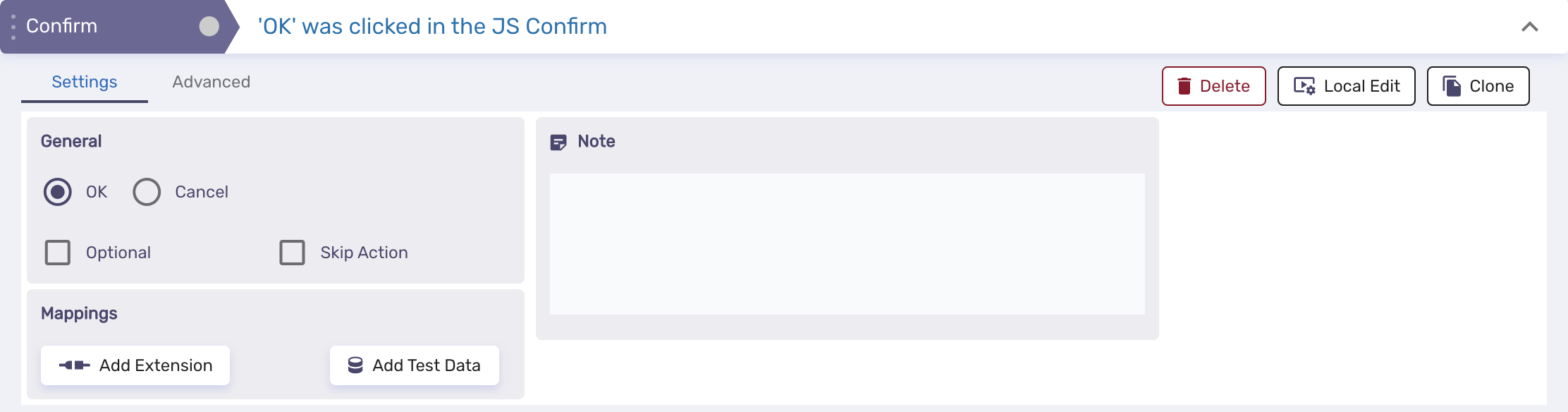

Confirmation

  • Settings: OK | Cancel, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script, Outcome Override

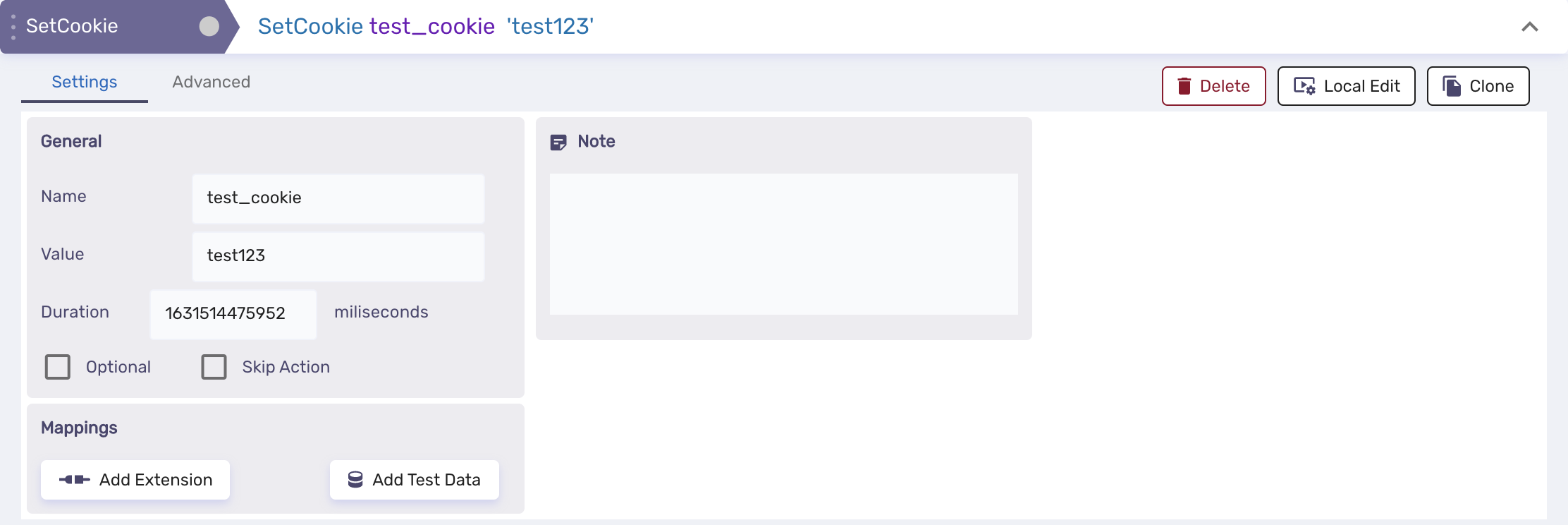

Cookie (SetCookie)

  • Settings: Name, Value, Duration, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script, Outcome Override

Custom Code

  • Settings: Custom Code field, Optional, Skip Action, Add Extension, Note
  • Advanced: Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script

DB Explorer Tool

  • Settings: Optional, Skip Action, Add Extension, Note
  • Advanced: Information, Outcome Override

Download

  • Settings: File (Downloaded), Optional, Skip Action, File, Add Extension, Note
  • Advanced: Skip Screenshot, Information, Pre Script, Post Script, Outcome Override

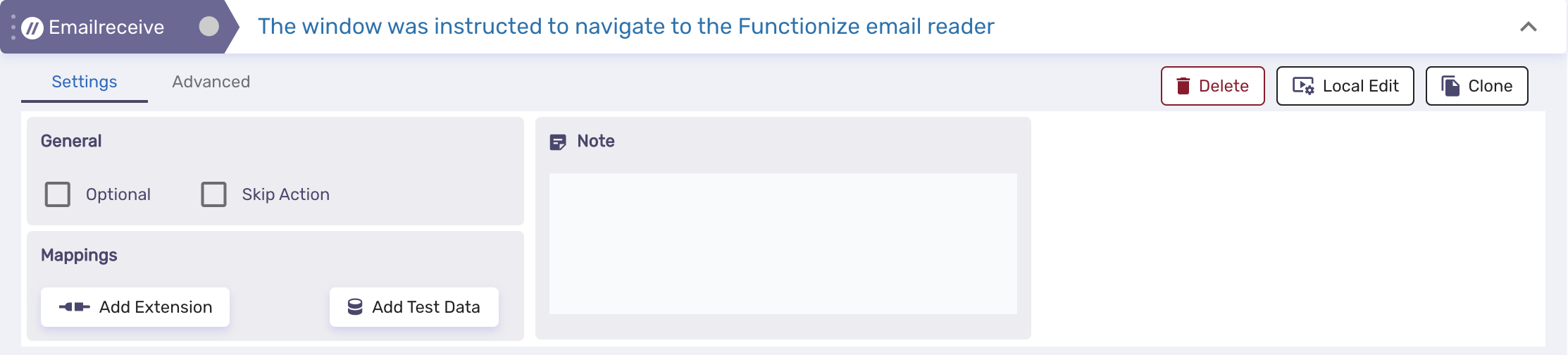

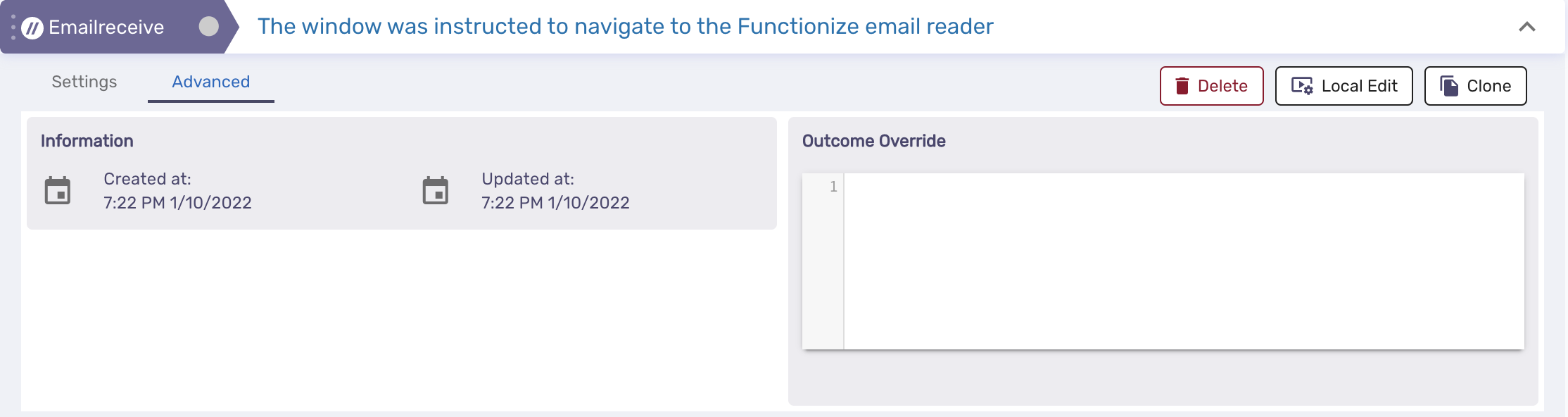

Email Reader Tool

  • Settings: Optional, Skip Action, Add Extension, Note
  • Advanced: Information, Outcome Override

File Viewer Tool

  • Settings: Optional, Skip Action, Add Extension, Note
  • Advanced: Information, Outcome Override

Full Page Check (VisPageChk)

  • Settings: Visual Match Requirement, Optional, Skip Action, Add Extension, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Skip Screenshot, Skip Scroll, Information, Pre Script, Post Script, Outcome Override

HTML Storage (SetHTML5Storage)

  • Settings: Name, Value, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script, Outcome Override

Key (Keypress)

  • Settings: Key, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: Window Width, Window Height, Skip Screenshot, Information, Pre Script, Post Script, Outcome Override

Navigate

  • Settings: URL, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: Information, Outcome Override

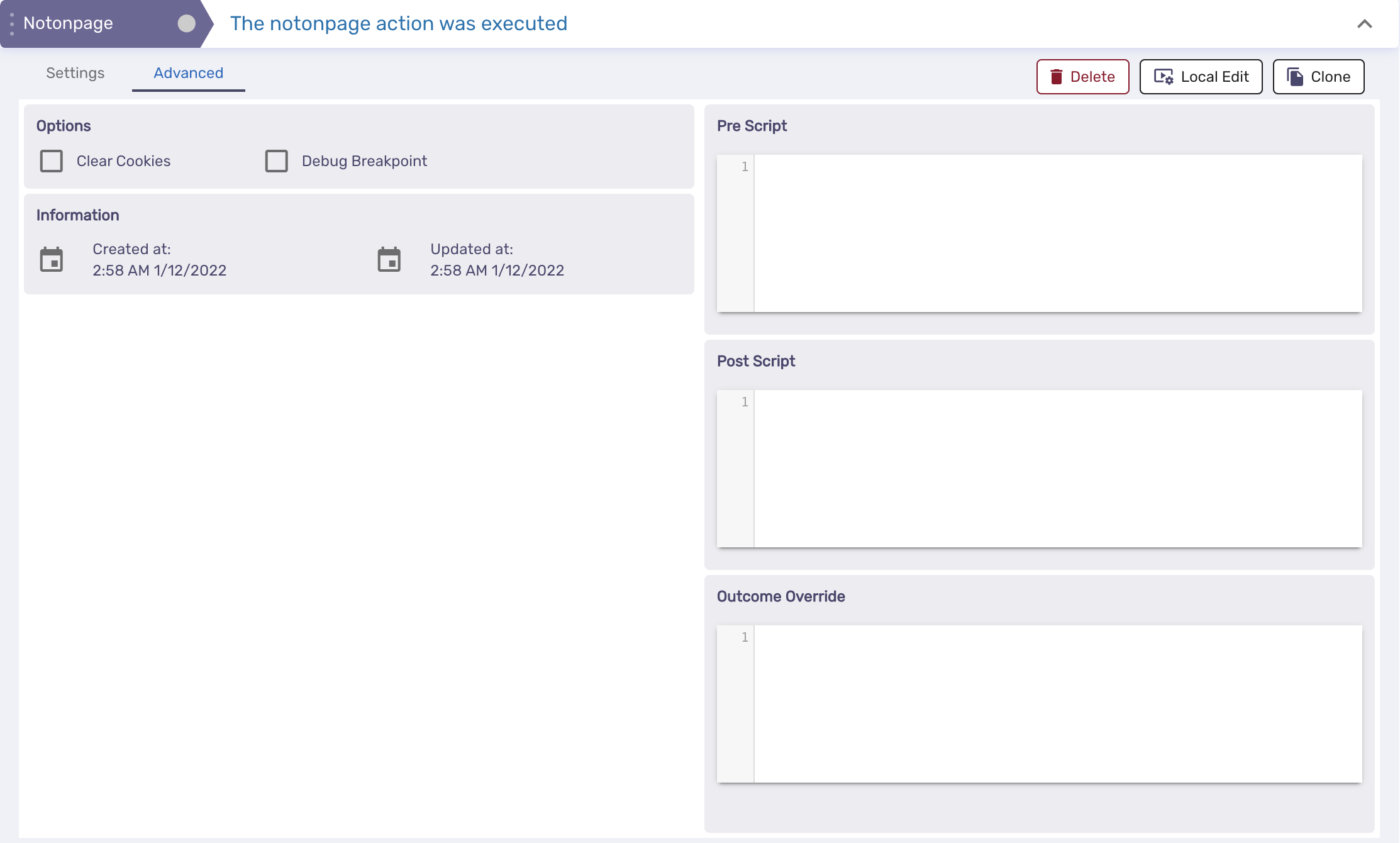

Not on Page

  • Settings: Selector field, Optional, Skip Action, Skip Scroll, Add Extension, Add Test Data, Note
  • Advanced: Skip Screenshot, Clear Cookies, Skip Scroll, Information, Pre Script, Post Script, Outcome Override

Pageinit

  • Settings: URL, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: Window Width, Window Height, Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script, Outcome Override

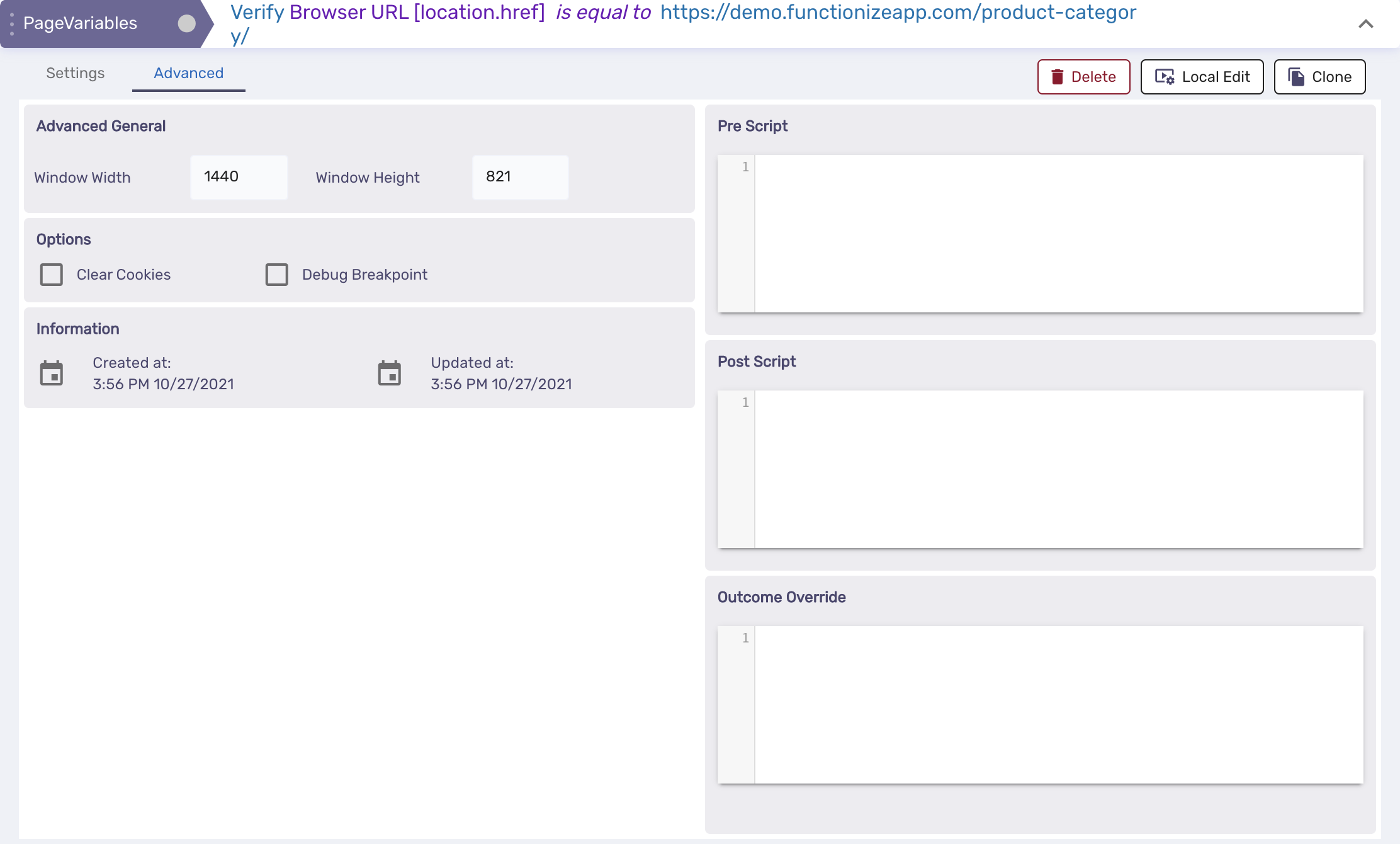

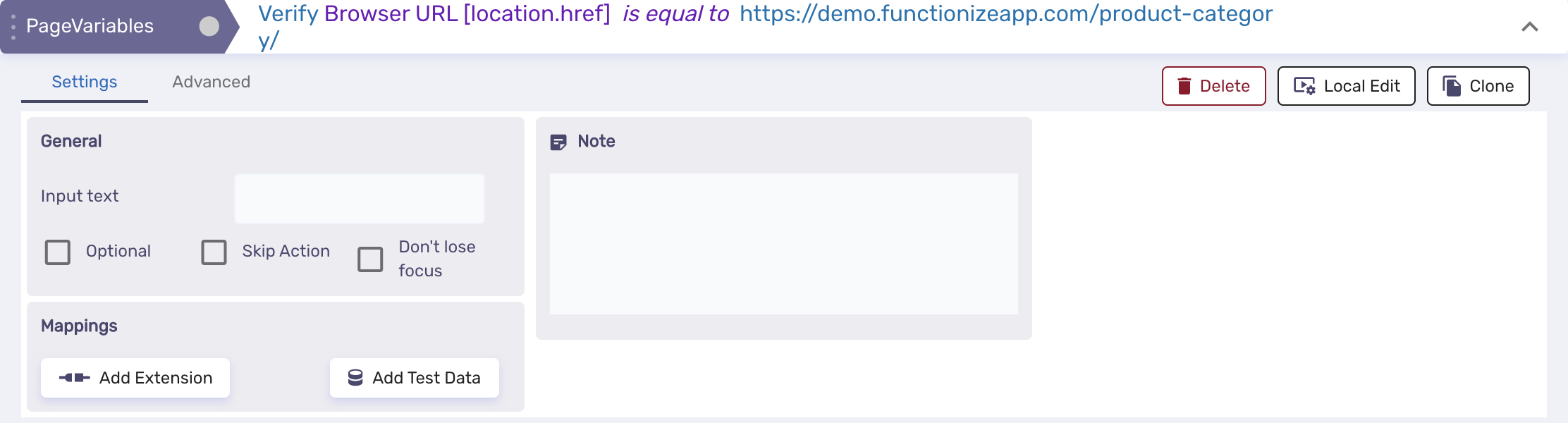

Page Variable

  • Settings: Value, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script, Outcome Override

Project Variable

  • Settings: Value, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script, Outcome Override

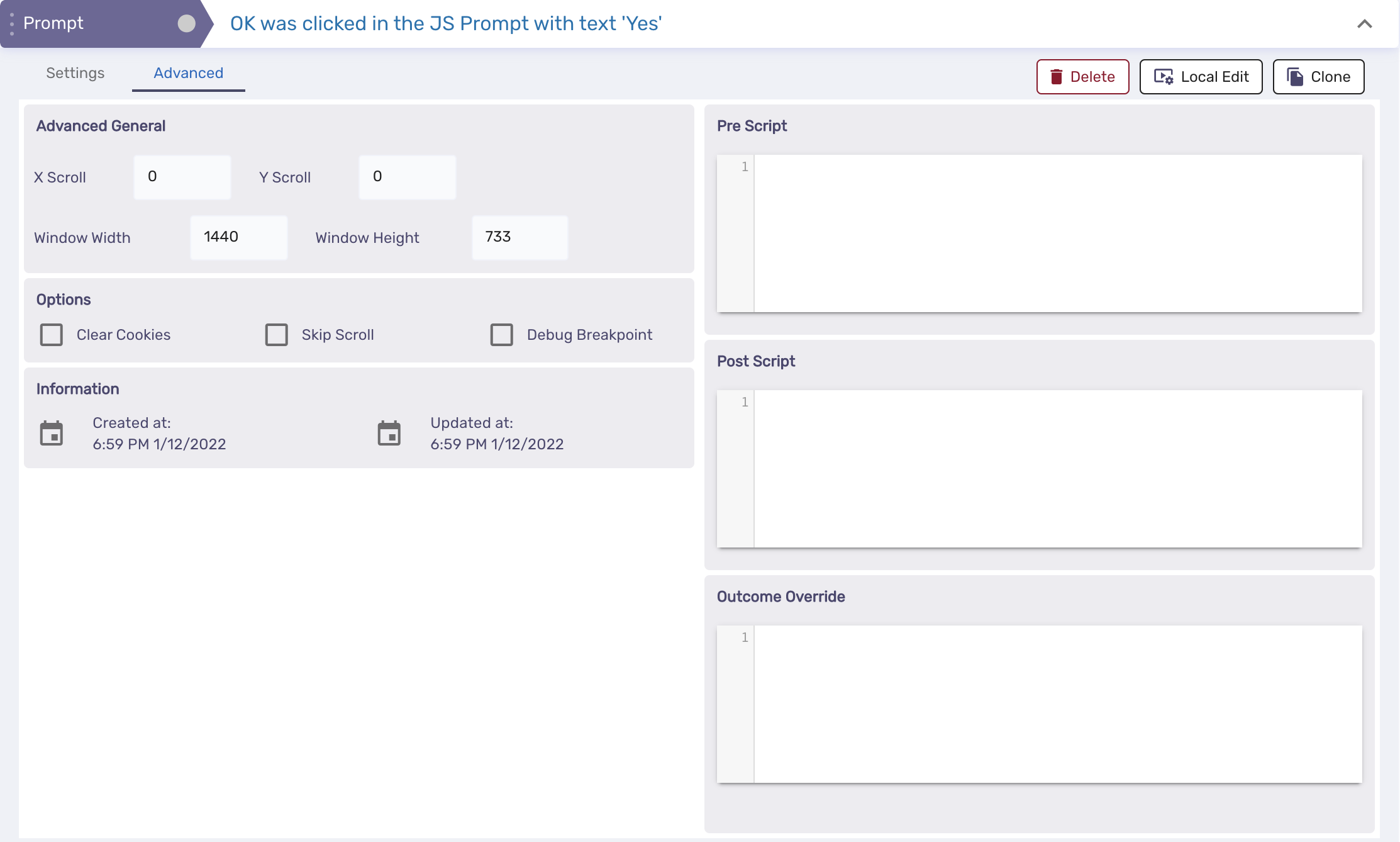

Prompt

  • Settings: Input, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: X Scroll, Y Scroll, Window Width, Window Height, Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script, Outcome Override

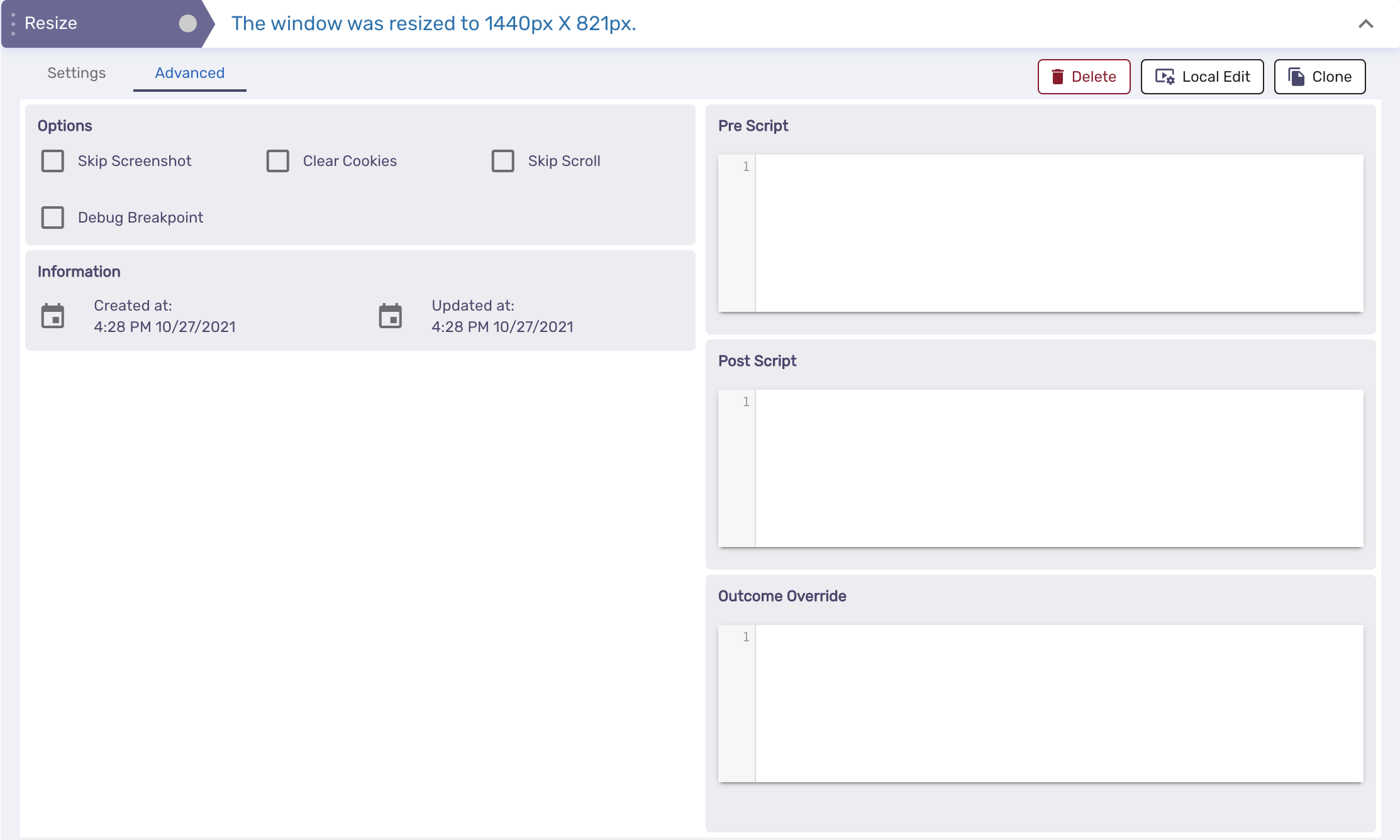

Resize

  • Settings: Window Width, Window Height, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: Skip Screenshot, Information, Pre Script, Post Script, Outcome Override

Scroll

  • Settings: X Coordinate, Y Coordinate, Add Extension, Add Test Data, Note
  • Advanced: Window Width, Window Height, Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script, Outcome Override

SMS Reader Tool

  • Settings: Optional, Skip Action, Add Extension, Note
  • Advanced: Information, Outcome Override

URLChange

  • Settings: URL, Optional, Skip Action, Add Extension, Add Test Data, note
  • Advanced: Window Width, Window Height, Skip Screenshot, Clear Cookies, Information, Pre Script, Post Script, Outcome Override

Wait

  • Settings: Time, Smart Wait, Optional, Skip Action, Add Extension, Add Test Data, Note
  • Advanced: Skip Screenshot, Information, Pre Script, Post Script, Outcome Override
