Scroll Actions

A Scroll Action can be performed if the website under test has a page that loads dynamically.  This action is also useful if the site has lazy loading.

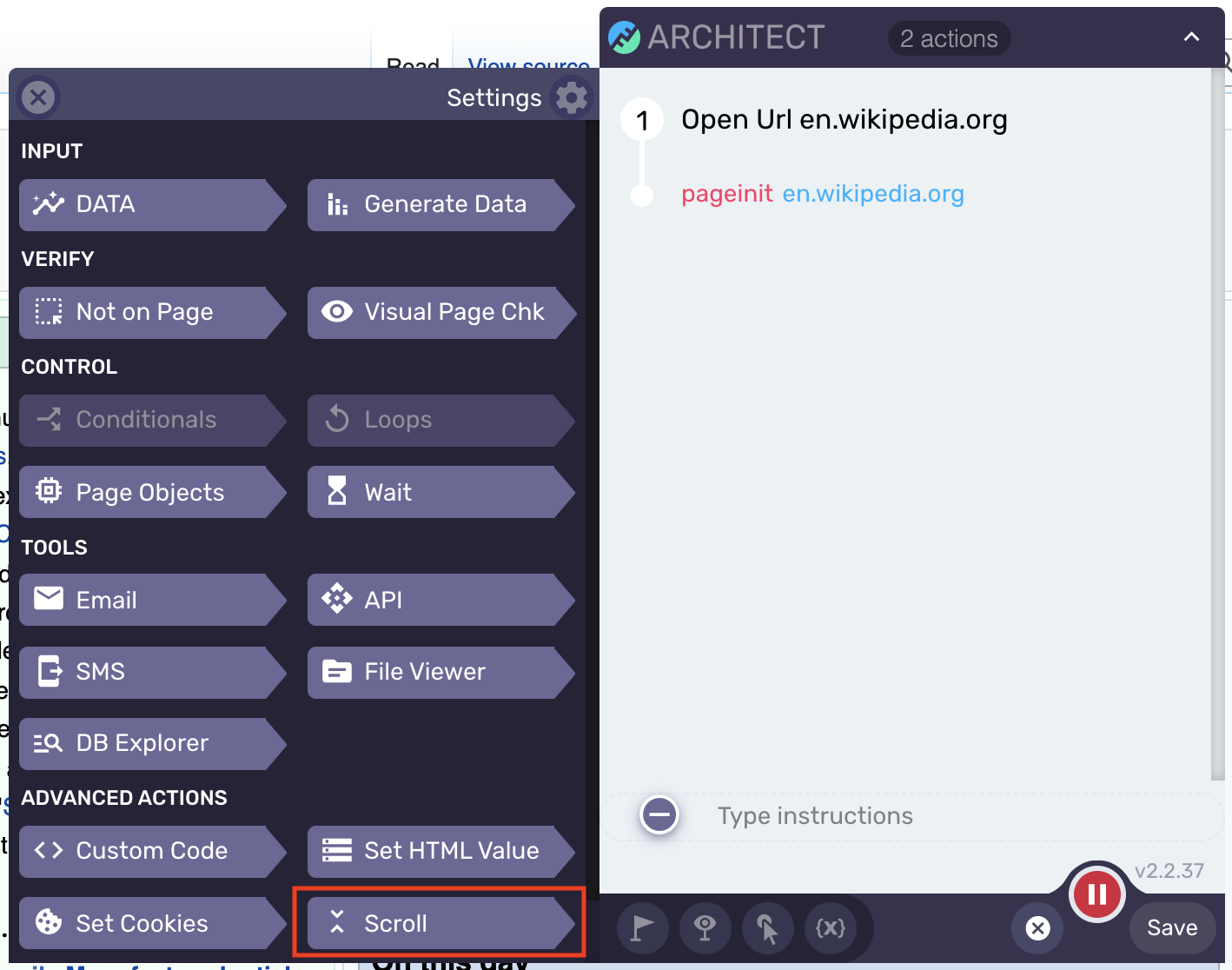

Create a Scroll Action in Architect

  1. Launch Architect and begin recording your test.
  2. Click the Add icon to open the Actions panel.
  3. Click Scroll.
  4. Scroll to the desired location on the site.
  5. Click Close.
  6. Your test now includes a Scroll Action.
  7. Click the white circle to the left of the Scroll Action to edit the Action.



Insert a Scroll Action

Scroll Actions can be inserted via the Test Detail page and Slider View.

Test Detail Page

  1. Open your Test.
  2. Hover where you would like to insert the Action.

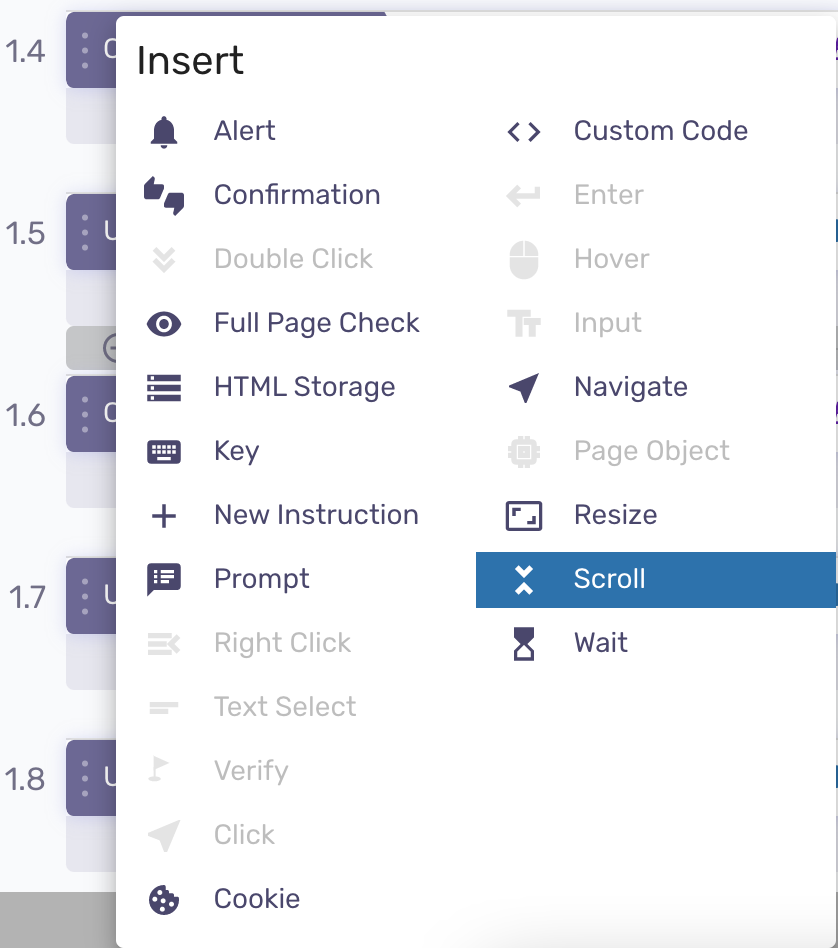

  3. Open the Insert menu. Select Scroll.
  4. Set the coordinates for the scroll.
  5. Click Insert.

Slider View

  1. Open your Test. Open Slider View via the View Results button or the View button next to any Action.
  2. Hover where you would like to insert the Action.
  3. Open the Insert menu. Select Scroll.
  4. Set the coordinates for the scroll.
  5. Click Insert.
